Footprint: 117m² | Floor area: 98m² | 4 bedrooms | 1 bathroom

Robust 117

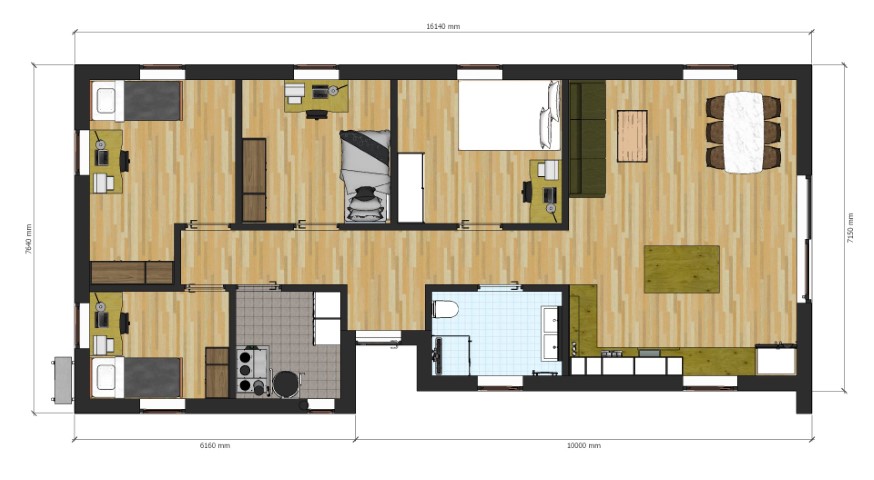

Project with a footprint of 117m². Although not a large house, it can easily fulfill the needs of a family of 2+3. The minimum land width required to build this house is 15.2m. We can apply various roofing options and customize the facade to suit the client’s taste. The attic space allows for storage of lighter belongings and seasonal items. We can also adapt the project for attic usage, with the possibility of modifying partition walls and a roof constructed with trusses at a 35-degree angle.

L                 – 16,15m

W                – 7,65m

Footprint  – 117m²

Floor area – 98m²

Bedroom 1 – 7,3m²

Bedroom 2 – 12,7m²

Bedroom 3 – 10,4m²

Bedroom 4 – 11,5m²

Living room/kitchen – 33m²

Bathroom – 5,4m²

Tech/laundry room – 5,7m²

Hallway – 12,1m²

Foundation – Swedish foundation concrete slab

Walls – Wood frame C24

Roof – Roof trusses

Floor insulation – 200mm EPS/XPS

Wall insulation – 250mm Isover wool

Roof insulation – 300mm Isover wool

Heating source and DHW (Domestic Hot Water) – air-to-air heat pump

Heating – Underfloor heating

Ventilation – Mechanical ventilation with heat recovery

410 000 zł net     – shell condition

580 000 zł net    – tenant finish
